Bio Face Reader

Home » Products » Bio Face Reader

Bio Face Reader from Star Link is a machine that automatically analyzes facial expressions like eyes, cheeks, ears, and other facial aspects via image capture, matches and maps it with the database. The Biometric Face Recognition system and Biometric Devices are capable of modeling a face in real-time, without any manual initialization needed.

The in-house team of Star Link developed it for keeping all the necessary requirements of the Indian environment and making it robust. It is basically meant for industrial purposes with a metallic body.

View Online Demo At:

1. How to configure WiFi with Face Reader
2. How to configure GPRS with Face Reader
3. Bio-Face Reader – How to enroll EM Card/ Face Template
4. How to Configure Client and Server mode
5. Bio Face Reader with Thermal Receipt Printer
6. How to set user profile setting & Punch Delay

English Ver.

1. How to Enroll Face / Card Template
2. Bio Face Reader with Thermal Printer
3. How To Configure WiFi With The Bio-Face Reader

Why use it?

— Accurate, Robust, Fully functional, efficient, and simple in use.

— Performs better even in the low-light medium.

— Contact-less BIOMETRIC solution.

— Offers additional security features into the Door Access Control Systems and Attendance System.

— A hygienic way to punch (Ex. In Canteen)

— Saves time.

Advantage of Biometric Face Reader Over Biometric Fingerprint

One of the major and the most favorable advantage is its contactless features which prohibits the employees from countering unnecessary & unsafe touch. Another advantage is its anti-spoofing technique which only accepts 3D faces and not 2D images.

Another latest and smart advantage is that the machine supports IoT by which attendance and access control data can be achieved in some minutes by the Real-Time Data Fetching technique.

Where Can We Use?

Bio Face Reader can use anywhere and in any industry type where security is the main concern. It can also be used with the Biometric & Time Attendance System to record and monitor the attendance of an employee.

The bio face reader system is highly efficient and reduces administrative time, preventing time mismanagement, and human errors. It can help you to monitor your employees who are working on a fixed time, flexible time, or contractual time.

We are the leading solution provider preferred name in the industry for our quality grade products. ‘ Bio Face Reader ‘ is another addition to our biometrics devices series that offers you high-quality machines.

The attractive feature of the Biometric Attendance System and the product is, its low maintenance, elegant design, tested high performance, highly durable, and easy installation process. It can also verify the user in less than 1 sec and its storage capacity is max 1000 days or up to 5 lakh records.

The following are the specification of the Bio Face Reader device:-

— Processor: Cortex A7 Dual Core, 1Ghz Processor

— User Capacity: Enroll upto 10,000 user (One face enrollment)

— Display : 3.2”, 240×320 TFT color 262K

— Keypad : Touch, Alphanumeric

— Dimension / Weight : L:165mm H:165mm W:135mm Weight:1.3kg

— Camera : High Resolution Infrared Camera

— IR LEDs for night vision

— Record capacity : Max 1000 days or up to 5 Lac records

— Recognition Algorithm : Feature extraction and pattern matching

— Verification Method : Face recognition / Proximity Card

— Verification Speed : Less than 1 Second

— Operating Distance : 40 – 80 cm

— Operating Temperature : 5 to 45 degree Celsius

— Operating Humidity : 20 to 90% non condensing

— Power : Max 15 watt

— Environment Light : 0-500 Lux

— Communication Method : Standard TCP / IP, USB Host / GPRS / WIFI( Security upto WPA2 & Radius Server not supported )

— Installation Method : Wall mounting

— Stored Template Size : 4KB Per User (12KB in case of 3 face enrollment)

— Identification Time : 1 ~ 2 Second

— USB Port : Pen Drive for firmware upgrade and data transfer

— Connectivity Port : RJ45 Port for Ethernet Connectivity

— Visual indicator : Green / Red for Acceptance & Rejection

— Audio Indicators : Voice-Guided message (Adjustable volume)

— Battery Backup : In-built battery 11.1V, 4800 mAh backup up-to 6 to 6.5 hours on Continues punching and stand by up 20 hours.

— Per Punch Size : 34 Byte

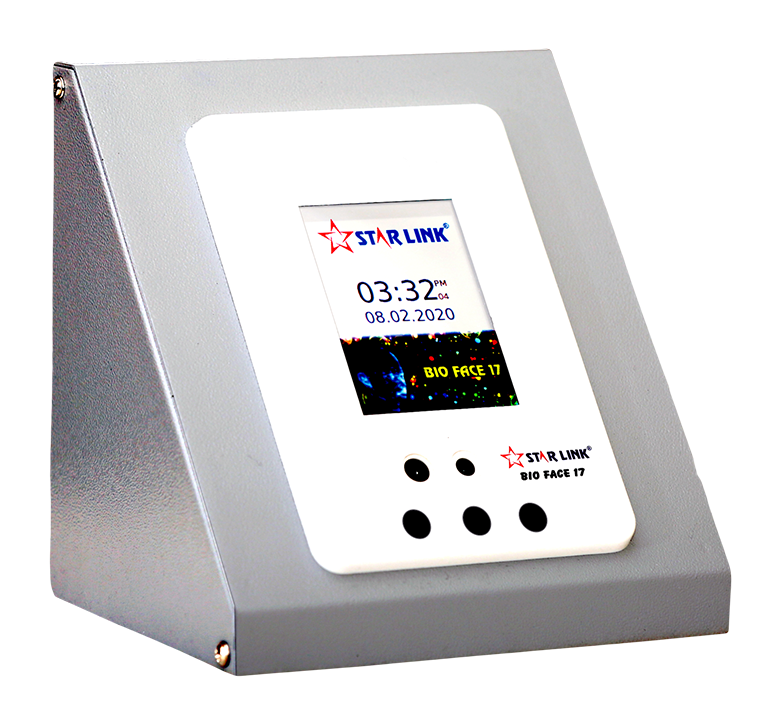

Bio Face Reader Machine
