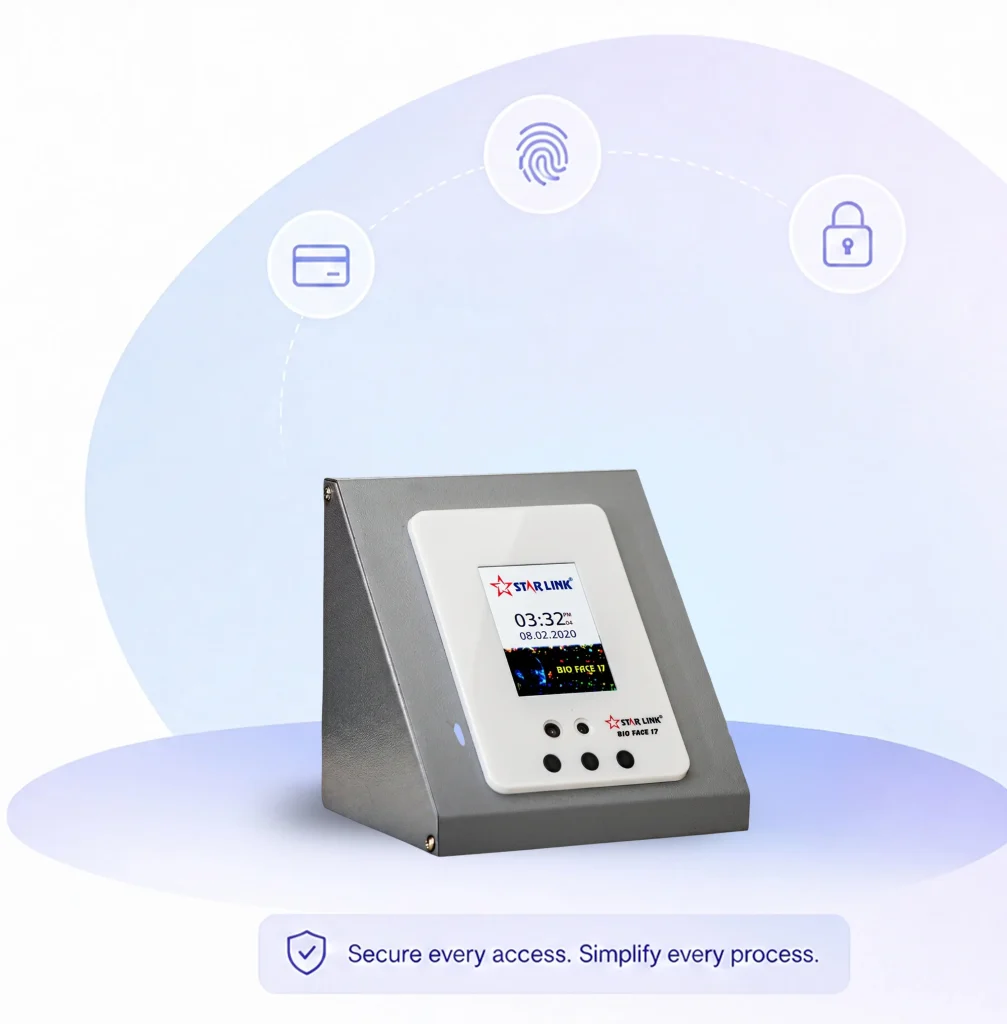

Face Reader with Thermal Screening

Bio Face Reader, is a face reading biometric attendance machine and access control machine which automatically maps the facial symmetry of a human face, identifies it, and stores it in the database. Face reader monitors the dimensions of a face, maps the facial features which include the distance between eyes, nose & mouth from each other and saves an analytical picture of our face into it.

The Biometric Facial Recognition system is capable of modeling a face in real-time, with no need for any manual initialization. The in-house team of Star Link developed it while keeping the Indian climatic conditions in the mind, thus making it robust enough to face environmental challenges. The metallic body provides an edge to its strength over other fiber-made attendance machines.

Request A Demo

Watch A Video

Download A PDF

Request A Brochure

View Online Demo At:

1. A No-Contact Attendance Sensation | About Device
2. Face reader with temperature sensing |Demo

Thermal Temperature Screening:-

A new add-on feature in the Bio face reader is the Thermal Temperature Screening, which helps in checking an employee’s physical well-being by scanning a person’s body temperature while marking the attendance and displaying it on the screen. Also, the machine denies access in case of over-temperature with audio/visual alert. This feature can work with multiple bio face readers installed in an office, which means a person can mark the attendanceon any machine.

In compliance to adhere to the No contact policy in public areas, the bio face reader is providing a contactless attendance and access control experience with the help of biometric facial recognition technology. While finger touch is required in the Biometric attendance system, hence, face readers provide contactless safety. Moreover, now bio face readers also detect the human temperature with thermal temperature screening technology.

The additional specification of the Bio Face Reader with thermal screening device:

• Thermal FAR infrared sensing spectrum: 9000~14000 nanometer

• Narrow point temperature sensing

• Temperature measurement range: 32~42 degrees celsius

• Ambient temperature range: 16 to 50 degrees celsius

• Measurement accuracy +/-0.2 degree

• Measurement resolution 0.1 degree

• DSP data processing with FIR &IIR filter

• Person/date wise temperature report generation

• Aggregated report generation

The following are the specification of the Bio Face Reader device:-

— Processor: Cortex A7 Dual Core, 1Ghz Processor

— User Capacity: Enroll upto 10,000 users (One face enrollment)

— Display : 3.2”, 240×320 TFT color 262K

— Keypad: Touch, Alphanumeric

— Dimension / Weight : L:165mm H:165mm W:135mm Weight:1.3kg

— Camera: High Resolution Infrared Camera

— IR LEDs for night vision

— Record capacity: Max 1000 days or up to 5 Lac records

— Recognition Algorithm: Feature extraction and pattern matching

— Verification Method : Face recognition / Proximity Card

— Verification Speed: Less than 1 Second

— Operating Distance: 40 – 80 cm

— Operating Temperature: 5 to 45 degrees Celsius

— Operating Humidity: 20 to 90% non condensing

— Power: Max 35 watt

— Environment Light : 0-500 Lux

— Communication Method : Standard TCP / IP, USB Host / GPRS / WiFi( Security upto WPA2 & Radius Server not supported )

— Installation Method: Wall mounting

— Stored Template Size: 4KB Per User (12KB in case of 3 face enrollment)

— Identification Time : 1 ~ 2 Second

— USB Port: Pen Drive for firmware upgrade and data transfer

— Connectivity Port: RJ45 Port for Ethernet Connectivity

— Visual indicator : Green / Red for Acceptance & Rejection

— Audio Indicators: Voice-Guided message (Adjustable volume)

— Battery Backup: In-built battery 11.1V, 4800 mAh backup upto 6 to 6.5 hours on Continues punching and stand by up 20 hours

— Per Punch Size: 34 Byte
