Industrial Bio-Star

Home » Products » Industrial Bio-Star

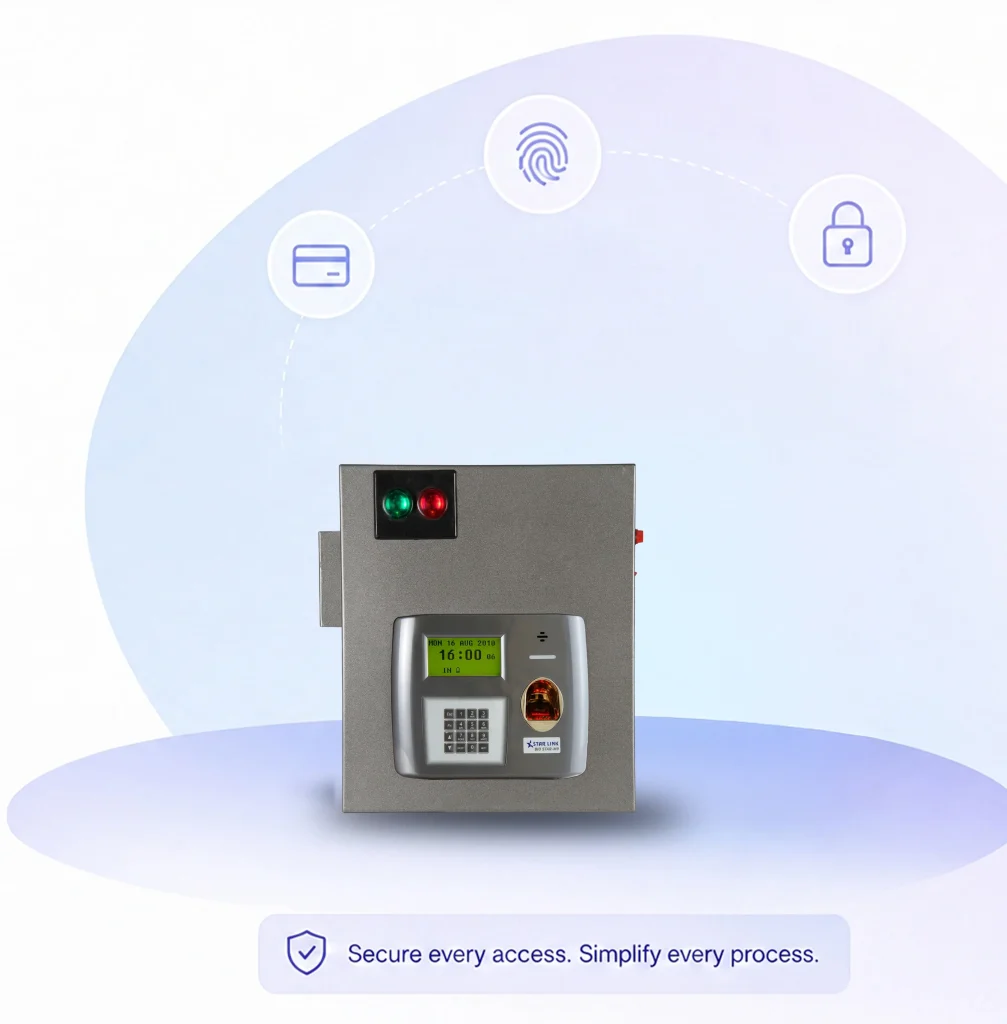

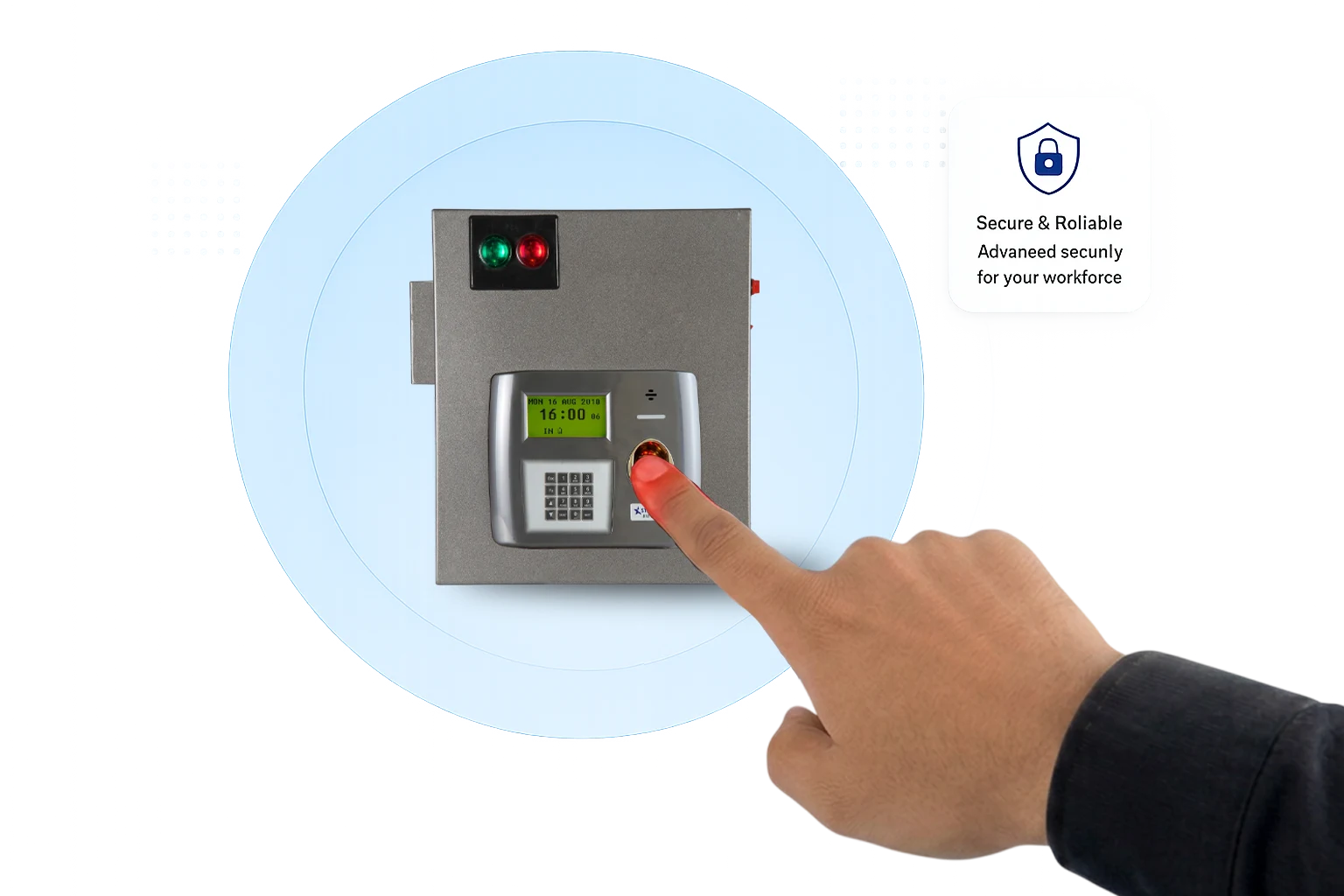

Industrial Bio-Star is the industrial version of Bio-Star, which is full of unmatchable features that you are looking for. It comes in a new and improved style with a larger graphics LCD display to show the information of the employee. It has more than 5 lacs recording capacity with up to 9560 fingerprint templates storage capacity.

The Industrial Bio-Star is designed to be installed in any industry or factory to manage the attendance records of employees. The software linked with this device easily grabs the data and helps to keep an updated record.

The Industrial Bio-Star is featured with audio messages in English or Hindi (as per your selection) and visual messages through two LED lights to confirm the punching status. In fact, many other customized messages can be loaded from the end-user. The Industrial Bio-Star runs on multiple operational modes like a fingerprint, card, PIN, etc.

This industrial Biometric attendance machine can be connected through built-in TCP/IP over Ethernet & USB port for data transfer. This device comes with a heavy metallic body for industrial purposes and an in-built battery for 28 hours battery back-up. Also, the Industrial Bio-Star can be customized according to your requirements.

Features of Industrial Bio-Star:

— Larger LC Display

— 5 lacs transaction storage

— 9560 fingerprint storage

— Multiple operational modes

— Built-in 10/100 Mbps TCP/IP connectivity

— Heavy metallic body

— Built-in battery with 48 hours back-up

— Customization possible

Technical Specifications:-

— Processor: 32 Bit RISC MCU @ 70MHz

— User Capacity: 15000

— Finger template storage capacity: 9560 templates

— Display LCD: 128×64 STN / YELLOW Graphics Display ( 70.70 mm 38.80 mm )

— Identification Time: Less than 1 Sec

— USB Port: Support Pen-drive for data transfer.

— Card Type: Contactless EM 4100 Card (Proximity) I (ISO / IEC 14443 A)

— Read Range/Frequency: EM Card – up to 120 mm/125 kHz; up to 60 mm/13.56 MHz

— Communication Method: Serial RS232, TCP / IP Protocol

— Baud Rate (Selectable): (2400 -115200) bps, TCP/IP Ethernet 10/100 Mbps

— Operating Temperature: 0 to 50 °C

— Operating Humidity: 10 to 90% Non-condensing

— Operating Voltage: 180-240V AC

— Keypad: 16 Key (4×4)

— Battery: Inbuilt battery 7.2Ah, back up of up to 28 hrs

— Dimension/ Weight: L 280mm H:327mm W:105mm/5.5 kgs

— Visual Indicator: Red/ Green LED / Message on LCD in English / Other language (Optional at extra cost)

— Audio Indicator: Voice Guided message (Adjustable volume) / voice message in other language (at extra cost)/ Customized voice greeting (at extra cost).

Scanner Specifications of Industrial Bio-Star:-

— Dedicated 400MHz DSP 2MB RAM

— ISO/IEC 19794 Fingerprint Template

— Sensor Technology: Optical CMOS

— Sensing Area: 16.0mm × 19.0mm

— Image Size (Pixels): 272 × 320

— Image Resolution: 500 dpi

— Finger Verification Option: 1:N, 1:1

— Finger Template Size: 384 bytes

— EER < 0.1%

–Enrollment Time: 1~1.5 Sec

— Verification < 0.8 Sec

— Identification Time: 1~1.5 Sec

Standard Applications:

Time Attendances, Access Control, Payroll, Canteen, Visitor Mgt.

Other Applications:

School / College Mgt., Club Mgt., Gym Mgt., Coffee Vending Machines, Tea Garden Solution. SDK is available for any other applications for system integrators.

Hardware Interface:

A boom barrier, Turnstile, Flap Barrier

Operational Modes of Industrial Bio-Star:-

— Only Finger

— Only Card (EM/SMART CARD)

— Card with finger

— Finger in card ( 2 fingers in 1 Kb card, 10 fingers in 4KB card)

— Card with password

— PIN with password

— Only PIN

Note: Combination varies as per the model

Why STAR LINK is ahead of others?-

— Latest technology

— Superior Standards of quality

— Customization facility

— Competitive prices

— Prompt delivery

— Excellent after-sales services

— Complete solution as per need
