Industrial Model

Home » Products » Industrial Model

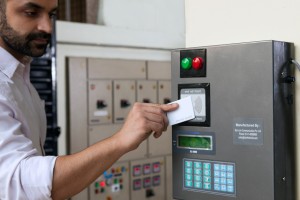

The Industrial Model comes in a heavy metallic body for dusty and harsh environments. This model is really worthy for access control as it can be used for access control of employees and security guards. It has 62,500 records storage capacity with 9560 fingerprint templates storage capacity.

The Industrial Model is another state-of-the-art from Star Link that serves its purpose of maintaining attendance records of the employee in Industries or big set-ups.

The Industrial Model features an LCD display to show the information of the employees whereas 2 large lights (Red & Green) indicate the status of the attendance. In the Biometric Attendance System, the built-in TCP/IP connectivity helps to get the data with a single click of the mouse.

Moreover, it features a heavy-duty battery backup of up to 48 hours, which makes it more compatible with industrial environments. This device works on multiple operational modes.

Industrial Model Features:

— Large LCD display

— 62,500 recording capacity

— Upto 9,560 fingerprint template storage

— Option 25000 storage at extra cost

— Heavy duty metallic body

— Remote device management

— Access Control Ready

— Built-in battery backup upto 28 hours

— Built-in TCP/IP connectivity

— Large Red/Green indicators

— Built-in camera for photo capturing (optional)

— Customization possible (according to the requirement)

Technical Specifications:-

Industrial Model is available in 3 models, depending on its operational mode.

Reader Type SMART CARD PROXIMITY CARD FINGERPRINT
Model No. SCHD – 06 PCHD – 06 FPHD – 06
Processor 32 Bit RISC MC 32 Bit RISC MC 32 Bit RISC MC
Card Type 1K,4K EM Card 512 Byte N/A
Read Range Up to 60 mm Up to 120 mm Up to 60 / 120 mm
Frequency /Modulation 13.56 Mhz. 125 Khz. 125 Khz/13.56 Mhz.
Identification Time Less than 1 sec. Less than 1 sec. Less than 1 sec.
Display LCD 16 x 2 Character 16 x 2 Character 16 x 2 Character
Memory Transaction 62,500 records 62,500 records 62,500 records
Card Masking 15,000 records 15,000 records 2000-9,500/6,500 records
Communication Mode RS 232, TCP/IP RS 232, TCP/IP RS 232, TCP/IP
Operating Temperature 5 to 50 °C 5 to 50 °C 5 to 50 °C
Baud Rate 10/100 Mbps 10/100 Mbps 10/100 Mbps
Operating Humidity 10 to 90% 10 to 90% 10 to 90%
Operating Voltage 180-240V AC 180-240V AC 180-240V AC
Dimension (in mm) H=360, W=290, B=90 H=360, W=290, B=90 H=360, W=290, B=90
Weight 6 kgs. 6 kgs. 6 kgs.
Keypad 4 x 6 4 x 6 4 x 6
Audio/Video Indicators Buzzer / LED Buzzer / LED Buzzer / LED

Standard Applications:

Time Attendances, Access Control, Payroll, Canteen, Visitor, Identifications

Other Applications:

School / College Mgt., Club Mgt., Gym Mgt., Coffee Vending Machines, SDK available for any other applications for system integrator

Scanner Specifications:-

— Dedicated 400MHz DSP 2 MB RAM

— ISO/IEC 19794 Fingerprint Template

— Sensor Technology: Optical CMOS

— Sensing Area: 16.0mm × 19.0mm

— Image Size (Pixels): 272 × 320

— Image Resolution: 500 dpi

— Finger Verification Option: 1:N, 1:1

— Finger Template Size: 384 bytes.

— EER < 0.1%

— Enrollment Time: 1~1.5 Sec

— Verification < 0.8 Sec

— Identification Time: 1~1.5 Sec

Operational Modes:-

— Only Finger

— Only Card (SMART CARD)

— Card with finger

— Finger in card ( 2 fingers in 1 Kb card, 10 fingers in 4KB card)

— Card with password

— Pin with password

— Only PIN

Note: Combination varies as per the model

Why STAR LINK is ahead of others?

— Latest technology

— Superior Standards of quality

— Customization facility

— Competitive prices

— Prompt delivery

— Excellent after-sales services

— Complete solution as per need
