Bio Link 09

Home » Products » Bio Link 09

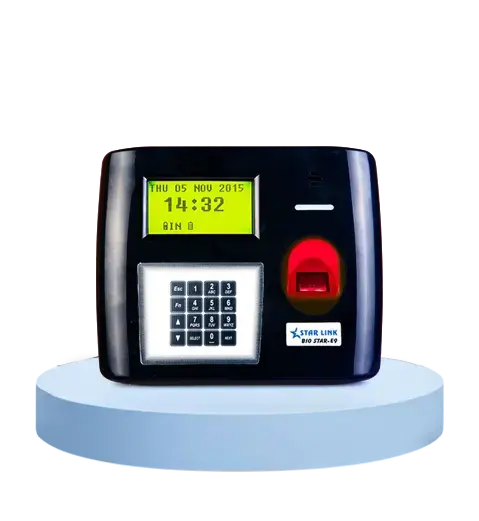

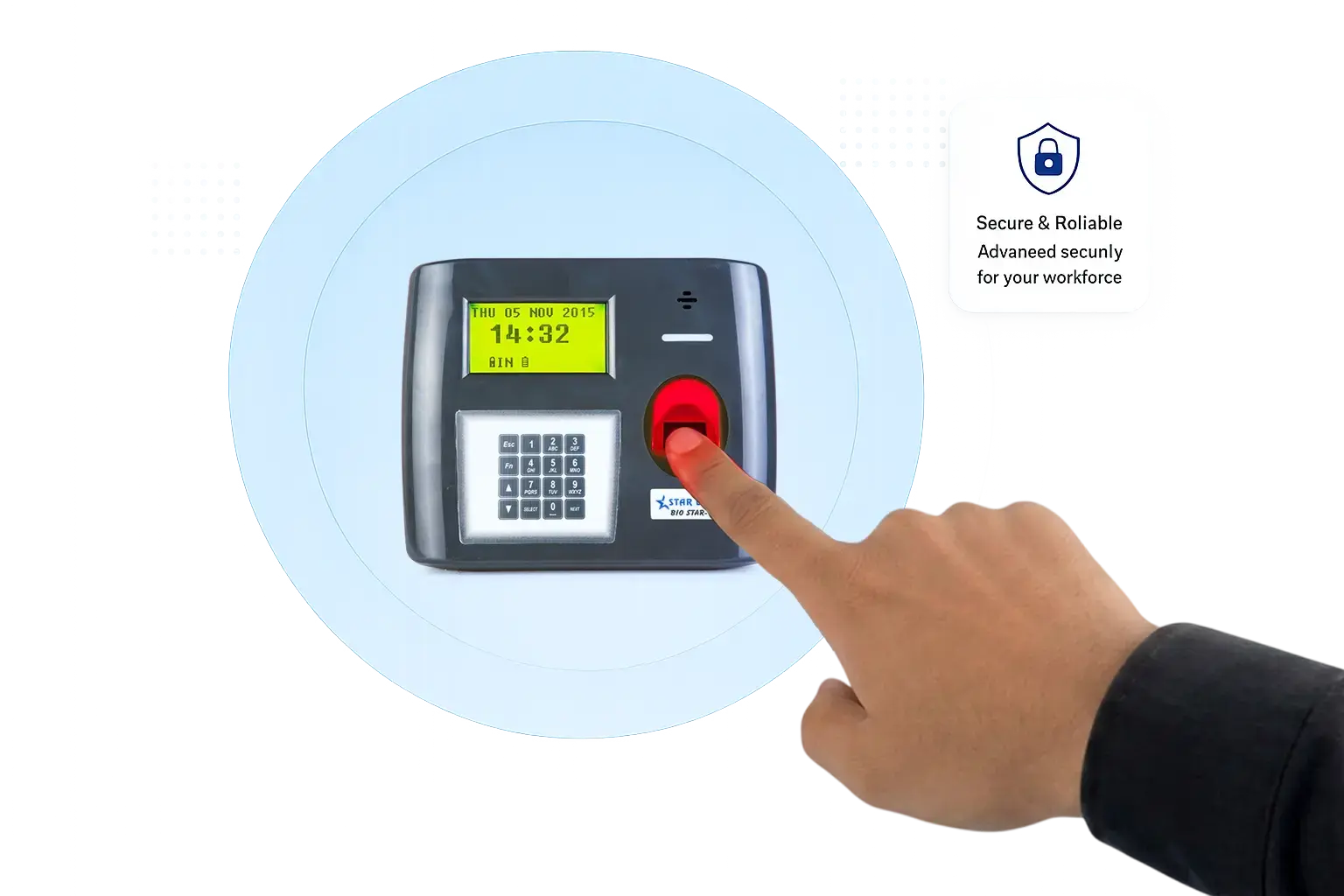

Bio-Link 09 is the best Attendance Machine. It is an exquisitely made versatile masterpiece and state-of-the-art from Star Link. The Bio-Link 09 – Time Attendance Machine is very effective in managing attendance in small & medium set-ups, where the users are up to 100. This device comes with unmatchable features that make it perfect in the field of access control and attendance management system.

A voice-guided message confirms the acceptance and rejection of the punching in the Time Attendance System. The Bio-Link features a recording capacity of 2 lacs records. It has multiple communication modes that allow the user to get the data easily without any hassle.

The Bio-Link can store 600 finger templates making it more useful for small & medium set-ups. It features a graphic LCD display that displays the message whereas the voice-guided message confirms the status of attendance. A Home Edition Software comes with the Bio-Link to maintain the attendance records.

Product Features

— Memory Transaction: 2 lacs

— User Capacity: up to 100

— 600 fingerprint template storage

— Graphic LCD display

— Communication Port: TCP/IP, USB

— USB Pen-drive can be used to transfer data

— Visual Indicator: Red/Green

— Access Control Ready

— Voice guided message in any English/Hindi.

Technical Specifications:-

— Processor: 32 Bit RISC MCU @ 70MHz

— Finger template storage capacity: 600 templates

— Display: LCD 128×64 STN / YELLOW Graphics Display ( 70.70 mm x 38.80 mm )

— Identification Time: Less than 1 Sec

— USB Port: Supports Pen-drive for data transfer

— Card Type: Contactless EM 4100 Card (Proximity) I (ISO / IEC 14443 A)

— Read Range / Frequency: EM Card up to 120mm /125 KHZ / up to 60 mm/ 13.56 MHz

— Communication Port: TCP/IP, USB

— Operating Temperature: 0 to 50 °C

— Operating Humidity: 10 to 90% Non-condensing

— Operating Voltage: DC 12V, 1 A Power Adapter (Battery Backup Optional at extra cost)

— Keypad: 16 Key (4×4)

— Dimension/ Weight: L 182mm H:155mm W:45mm/500 gms

— Visual Indicator: Red/ Green LED / Message on LCD in English

— Audio Indicator: Voice Guided message (Adjustable volume)

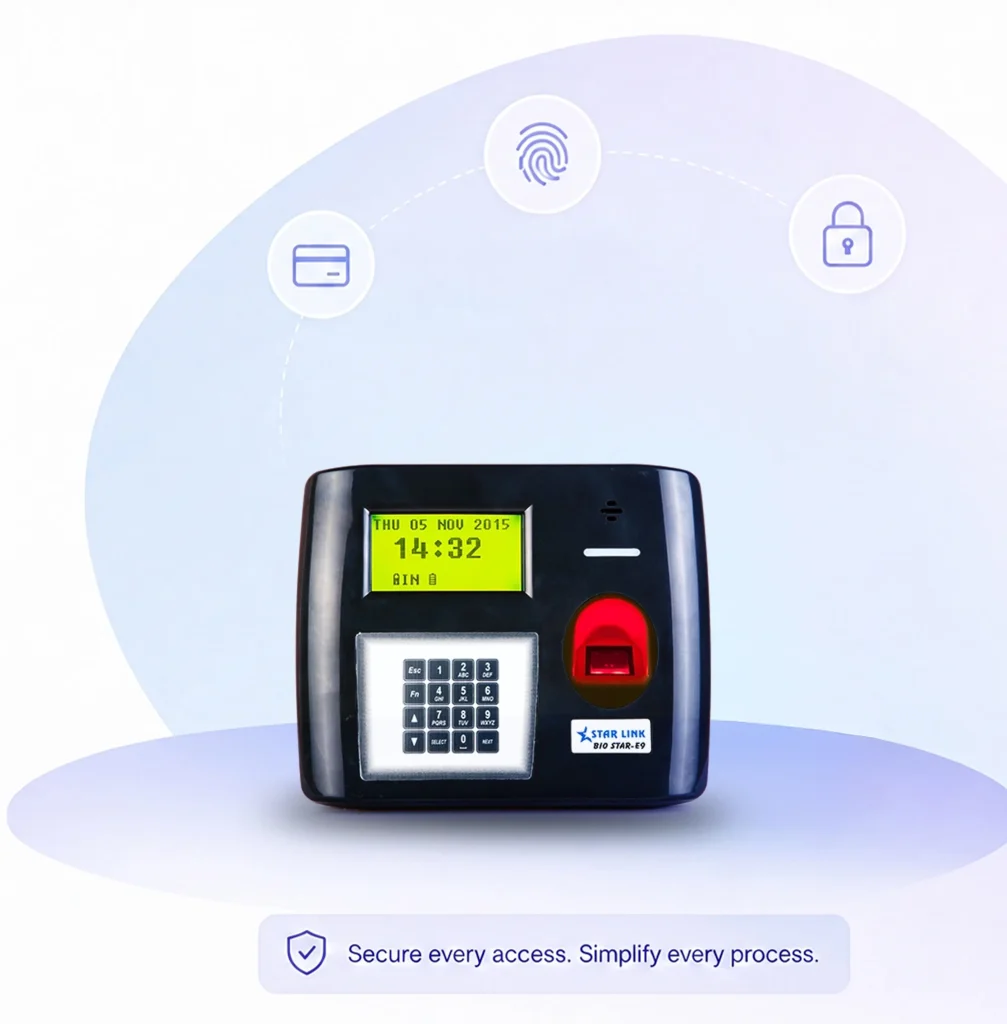

Operational Modes:-

— Only Finger

— Only Card

Note: Combination varies as per the model

Standard Applications:

Time Attendance Machine, Gym Management System, Access Control System, Payroll System, & Visitor Management System.

Other Applications:

A boom barrier, Turnstile, Flap Barrier

Scanner Specifications:-

— Dedicated 400MHz DSP 2MB RAM

— Sensor Technology: Optical CMOS

— Sensing Area: 16.0mm × 19.0mm

— Image Size (Pixels): 272 × 320

— Image Resolution: 500 dpi

— Finger Verification Option: 1:N, 1:1

— Finger Template Size: 384 bytes

— EER < 0.1%

— Enrollment Time: 1~1.5 Sec

— Verification < 0.8 Sec

— Identification Time: 1~1.5 Sec

Why STAR LINK is ahead of others?

— Latest technology

— Superior Standards of quality

— Customization facility

— Competitive prices

— Prompt delivery

— Excellent after-sales services

— Complete solution as per need
