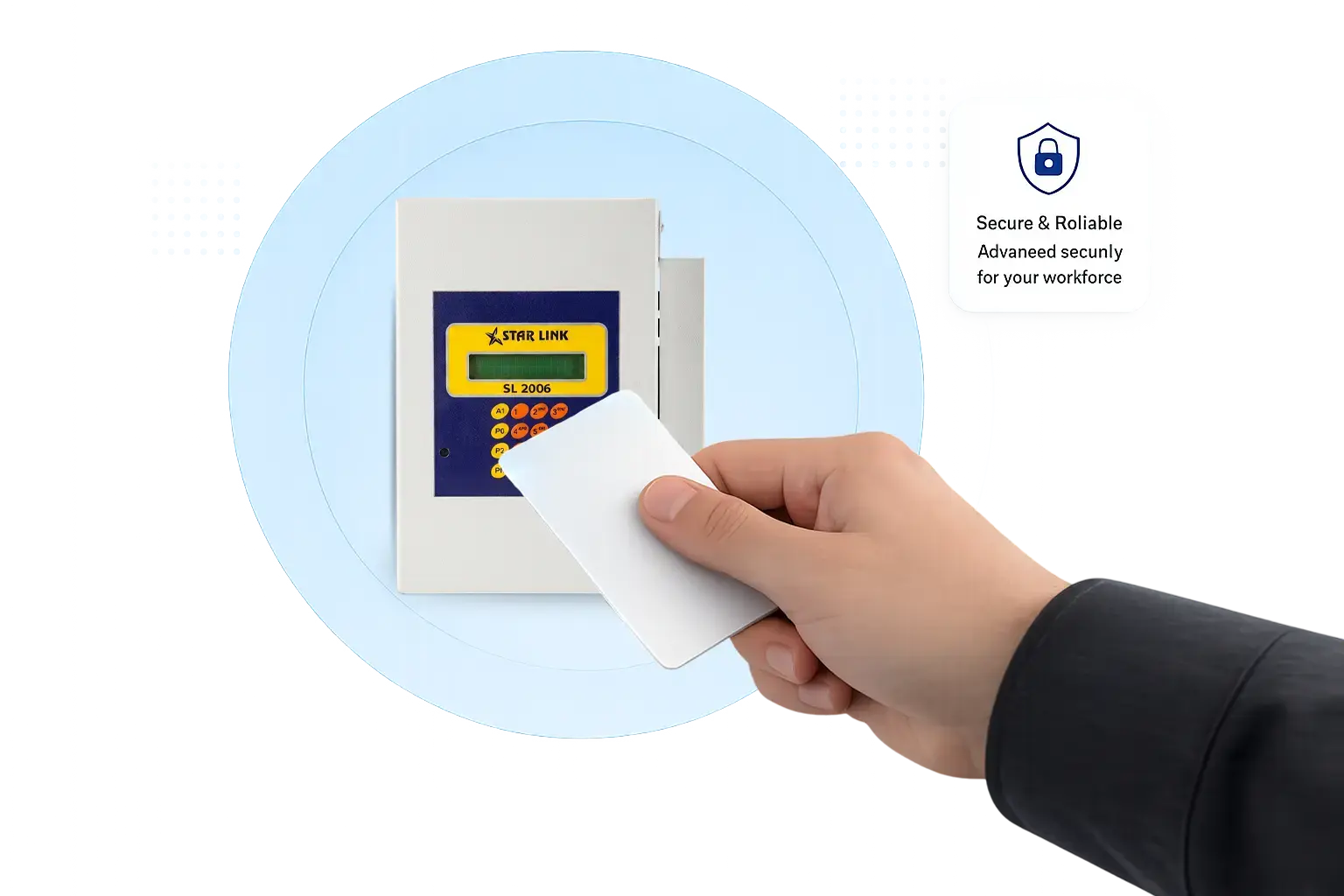

8 Door Controller

Home » Products » 8 Door Controller

Star Link is a leading manufacturer of highly advanced Door Control System & Door Access Control System. Door Access Control System & Door Control System is an extremely economical option for access control every user access can be control door wise, time wise and Anti Pass Back(APB) can also be enabled for critical zones. Small sleek readers are fitted on each door along with EM lock. One controller can control 8 doors and up to 15000 – 50000 users for higher doors multiple controller can be installed. Star Link Access control software simplifies management of access and generate various reports Door wise & User wise. Attendance report can also be generated with the help of Star Link Time Office Software.

    Product Features

  • Processor – 32 bit RISC micro-controller
  • 2MB Flash with data storage of 62500 records
  • No. of doors control – 8/4
  • No. of readers connected – 15/8
  • Dimension – 21cm x 14cm x 5cm
  • Piezoelectric buzzer for acceptance/rejection indication
  • Lock to controller distance – up to 60 mtrs. (depending on wire resistance)
  • Multiple time zone to restrict access time wise
  • EM/Mi-fare Slave Reader to entry & exit

    Technical Specifications:-

  • Processor : 32 Bit RISC Micro-Controller
  • Memory card support up to 4 GB for data transfer or data storage
  • Card Enrollment 15000 – 50000 records
  • 16×2 Character alpha-numeric Back-lit LCD with window area 15×65 mm
  • LCD display DD-MM-YYYY,day of the week and HH:MM:SS time format
  • Time Keeping : Build in 24 hours Quartz real time clock
  • Power display : 12V DC Screw Connector Strip make connection easy and reliable
  • Multiple Access Group to restrict access area wise
  • Multiple Switch zone to restrict access Time wise
  • RS 485 networking range 800mts
  • Manual switch Options in place of out reader
  • Door sensor option for door open time monitor
  • Lock to controller distance : Depend on wire resistance
  • Works on AC input voltage: 180-260 volts 50Hz
  • Operating Temperature: 0 – 50 °C
  • Humidity: 10-90 % Non-Condensing
  • Dimension: 21cm x 14cm x 5cm
  • Weight: 1.1 kg

8 Door Controller with Access Control System
8 Door Controller
8 Door Controller with Biometric Slave Reader
