Industrial Bio-Lynx

Home » Products » Industrial Bio-Lynx

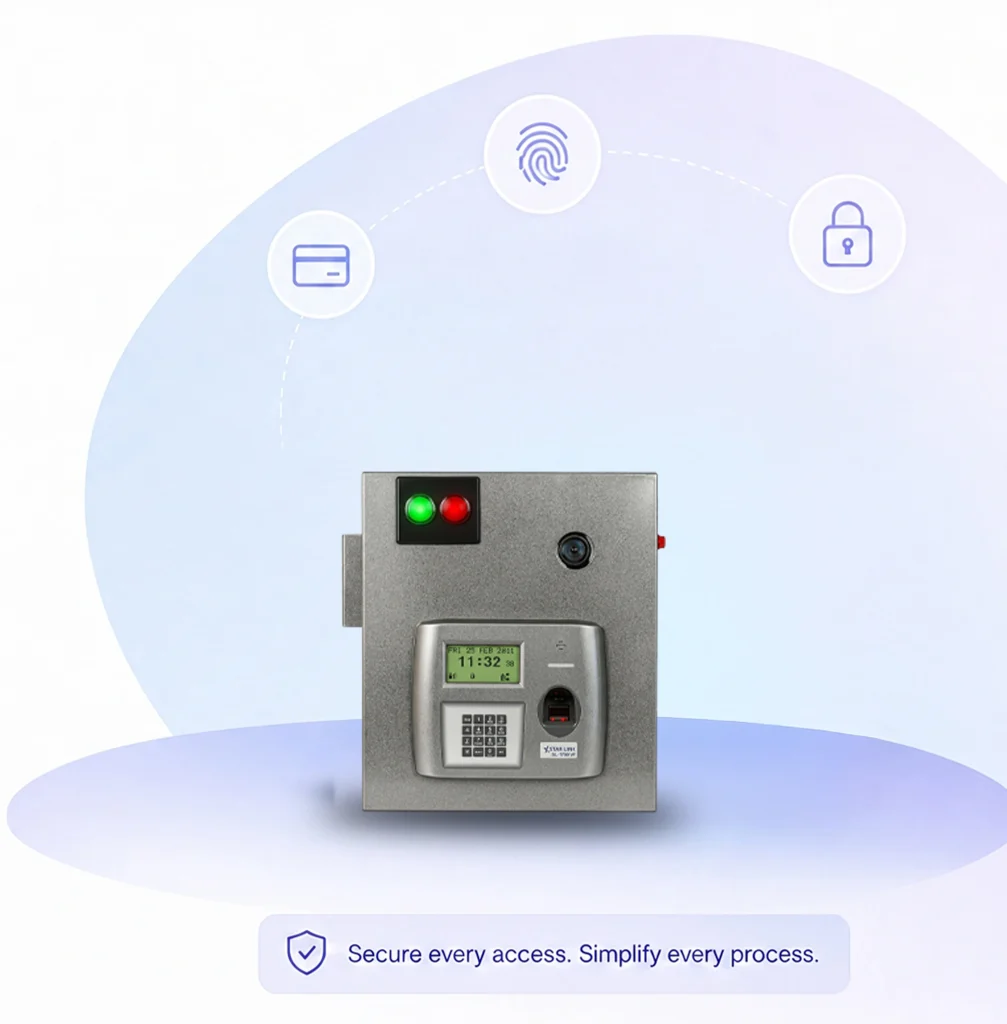

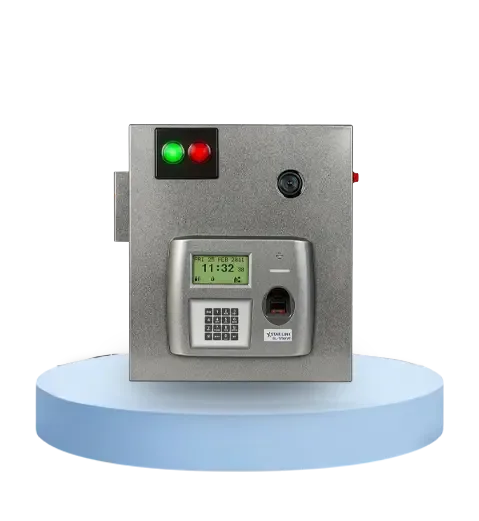

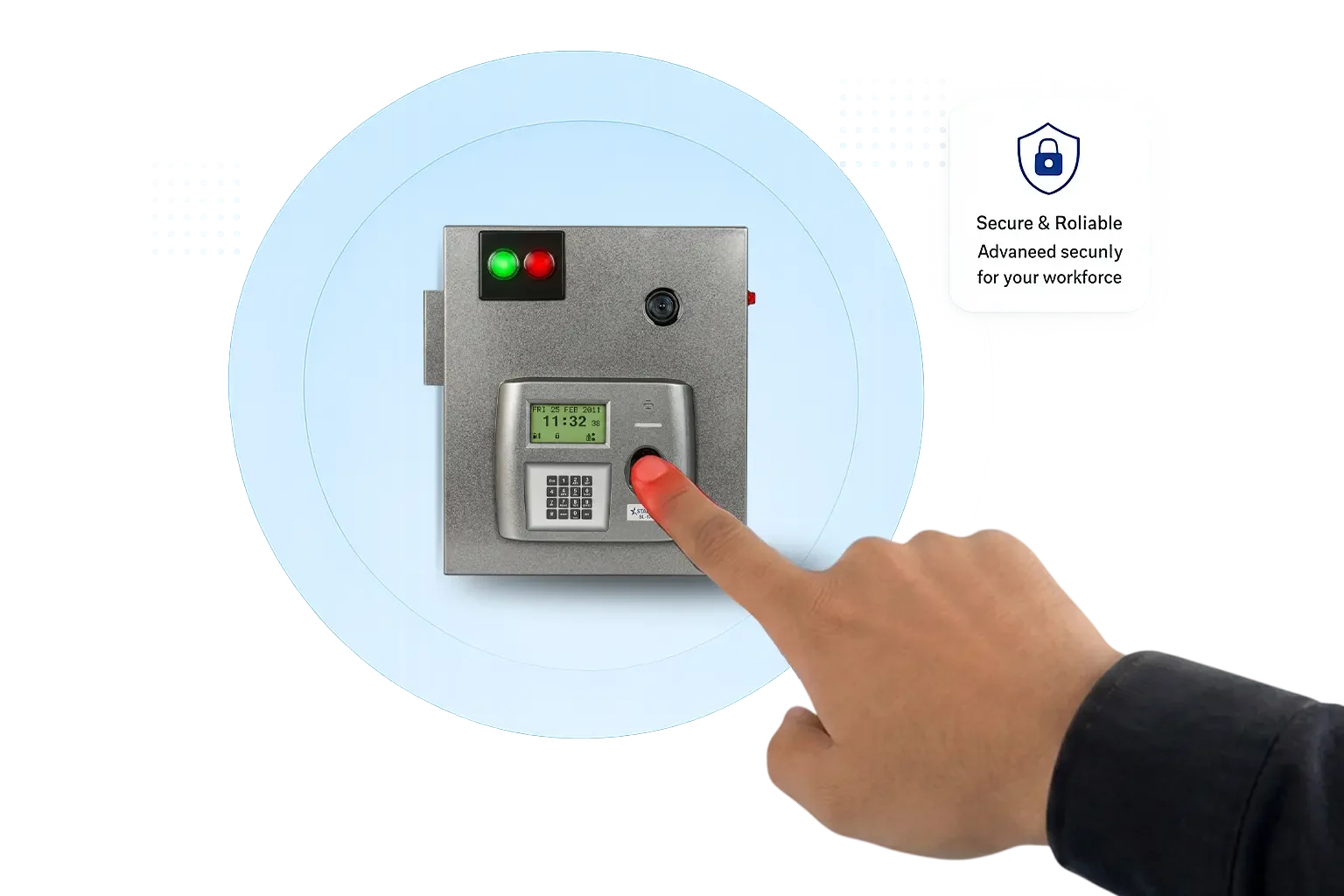

Industrial Bio Lynx is another masterpiece from Star Link in the segment of Industrial Models that serves its purpose of attendance perfectly. It features transaction storage of 5 lacs records while 9,560 finger templates can be stored in it.

For double-layer security, an internal color 2MP camera is there which helps to capture the image of the person while punching. The Industrial Bio-Lynx features multiple communication modes like Wi-Fi, GPRS, RS-232, USB, and TCP/IP. This allows the user to get the data easily with a single click of a mouse.

Industrial Bio-Lynx is a perfect device to help you by increasing the productivity of your firm. This device is versatile to be used at any kind of set-up and workplace as it comes with a heavy metallic body and built-in battery for 24 hours backup.

This device is also enabled with data push technology. This Biometric Attendance System device comes with an LCD that displays the details of the employees, while a voice-guided message provides confirmation about the attendance. Industrial Bio-Lynx can also be customized according to the requirement.

Features of Industrial Bio-Lynx:

— Recording capacity of 5 lacs records

— 2000 – 9,560 fingerprint templates storage capacity

— Color 2MP camera interface (optional at extra cost)

— Connectivity mode: RS232, USB, TCP/IP

— Remote Device Management

— Client-server mode

— Data Push Technology

— GPRS (SIM Card) & Wi-Fi ( Security upto WPA2 & Radius Server not supported )

— Voice-guided message in Hindi/English

— Heavy metallic Body

— Built-in battery with 24 hours battery back-up

— Customization possible

Technical Specifications of Industrial Bio-Lynx:-

— Processor: 32 Bit RISC 9 MCU @ 200 MHz

— Memory Storage: 4 GB SD Memory Card

— User Capacity: 15000

— Finger template storage capacity: 9560 templates

— Display LCD: 128×64 STN / YELLOW Graphics Display ( 70.70 mm 38.80 mm )

— Identification Time: Less than 1 Sec

— USB Port: Support Pen-drive for data transfer, USB Data Card

— Card Type: Contact less EM 4100 Card (Proximity) I (ISO / IEC 14443 A)

— Read Range/Frequency: EM Card – up to 120 mm/125 KHZ; up to 60 mm/13.56 MHz

— Communication Method: Serial RS232, TCP / IP Protocol

— Baud Rate (Selectable): (2400 -115200) bps, TCP/IP Ethernet 10/100 Mbps

— Operating Temperature: 0 to 50 °C

— Operating Humidity: 10 to 90% Non-condensing

— Operating Voltage: 180-240V AC

— Keypad: 16 Key (4×4)

— Battery: Inbuilt battery 7.2Ah-12V, back up of up to 28 hrs.

— Dimension(in mm)/ Weight(in Kgs): H=327 B= 105  W =280 / 5.5 kgs

— Visual Indicator: Red/ Green LED / Message on LCD in English / Other language (Optional at extra cost)

— Audio Indicator: Voice Guided message (Adjustable volume) / voice message in other language (at extra cost)/ Customized voice greeting (at extra cost)

Scanner Specifications of Industrial Bio-Lynx:-

— Dedicated 400MHz DSP 2 MB RAM

— ISO/IEC 19794 Fingerprint Template

— Sensor Technology: Optical CMOS

— Sensing Area: 16.0mm × 19.0mm

— Image Size (Pixels): 272 × 320

— Image Resolution: 500 dpi

— Finger Verification Option: 1:N, 1:1

— Finger Template Size: 384 bytes

— EER < 0.1%

— Enrollment Time: 1~1.5 Sec

— Verification < 0.8 Sec

— Identification Time: 1~1.5 Sec

Standard Applications:

Time Attendances, Access Control, Payroll, Canteen, Visitor, Identifications

Other Applications:

School / College Mgt., Club Mgt., Gym Mgt., Coffee Vending Machines,
SDK available for any other applications for system integrator.

Hardware Interface:

Boom barrier, Turnstile, Flap Barrier

Operational Modes of Industrial Bio-Lynx:-

— Only Finger

— Only Card (EM)

— Card with finger

— Finger in card ( 2 fingers in 1 Kb card, 10 fingers in 4KB card)

— Card with password

— PIN with password

— Only PIN

Note: Combination varies as per the model

Why STAR LINK is ahead of others?

— Latest technology

— Superior Standards of quality

— Customization facility

— Competitive prices

— Prompt delivery

— Excellent after sales services

— Complete solution as per need
