Industrial Model with Printer

Home » Products » Industrial Model with Printer

Industrial Model with Printer is designed especially for Canteen Management Systems. This device comes with a thermal printer for printing coupons.

The Industrial Model with printer comes in a heavy metallic body for dusty and harsh environments. It has 62,500 records storage capacity with 9,560 fingerprint templates storage capacity.

The Industrial Model with printer features an LCD display to show the information of the employees whereas 2 large lights (Red & Green) indicate the status of the attendance. The built-in TCP/IP connectivity helps to get the data with a single click of the mouse.

It features a heavy-duty battery backup of up to 24 hours, which makes it more compatible with industrial environments. This device works on multiple operational modes.

Product Features of Industrial Model with Printer:

— Large LCD display

— 62,500 recording capacity

— 9,560 fingerprint template storage

— Built-in Thermal printer

— Heavy-duty metallic body

— Built-in battery back-up up to 24 hours

— Built-in TCP/IP connectivity

— Large Red/Green indicators

— Customization possible (according to the requirement)

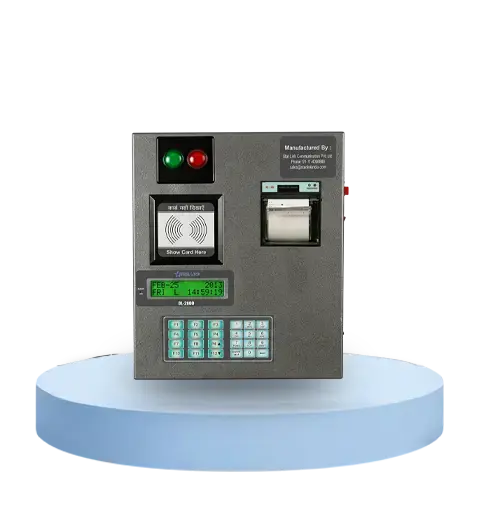

Technical Specifications of Industrial Model with Printer:-

Reader Type SMART CARD PROXIMITY CARD FINGERPRINT
Processor 32 Bit RISC MC 32 Bit RISC MC 32 Bit RISC MC
Card Type 1K, 4K EM Card 32 Bit UID N/A
Read Range Up to 60 mm Up to 120 mm Up to 60 / 120 mm
Frequency /Modulation 13.56 Mhz. 125 Khz. 125 Khz/13.56 Mhz.
Identification Time Less than 1 sec. Less than 1 sec. Less than 1 sec.
Display LCD 16 x 2 Character 16 x 2 Character 16 x 2 Character
Memory Transaction 62,500 records 62,500 records 62,500 records
Card Masking 15,000 records 15,000 records 9,560 records
Communication Mode RS 232, TCP/IP RS 232, TCP/IP RS 232, TCP/IP
Operating Temperature 5 to 50 °C 5 to 50 °C 5 to 50 °C
Baud Rate 10/100 Mbps 10/100 Mbps 10/100 Mbps
Operating Humidity 10 to 90% 10 to 90% 10 to 90%
Operating Voltage 180-240V AC 180-240V AC 180-240V AC
Dimension (in mm) H=360, W=290, B=90 H=360, W=290, B=90 H=360, W=290, B=90
Weight 6 kgs. 6 kgs. 6 kgs.
Keypad 4 x 6 4 x 6 4 x 6
Audio/Video Indicators Buzzer / LED Buzzer / LED Buzzer / LED

Scanner Specifications of Industrial Model with Printer:-

— Dedicated 400MHz DSP 2MB RAM

— ISO/IEC 19794 Fingerprint Template

— Sensor Technology: Optical CMOS

— Sensing Area: 16.0mm × 19.0mm

— Image Size (Pixels): 272 × 320

— Image Resolution: 500 dpi

— Finger Verification Option: 1:N, 1:1

— Finger Template Size: 384 bytes

— EER < 0.1%

— Enrollment Time: 1~1.5 Sec

— Verification < 0.8 Sec

— Identification Time: 1~1.5 Sec

Standard Applications:

— Canteen Management System

Operational Modes of Industrial Model with Printer:-

— Only Finger

— Only Card (EM/SMART CARD)

— Card with finger

Note: Combination varies as per the model

Why STAR LINK is ahead of others:-

— Latest technology

— Superior Standards of quality

— Customization facility

— Competitive prices

— Prompt delivery

— Excellent after sales services

— Complete solution as per need



Checkout our other Products:

  1. Time attendance machine
  2. Industrial Bio-Lynx

industrial model with printer biometric device
