Classic Model

Home » Products » Classic Model

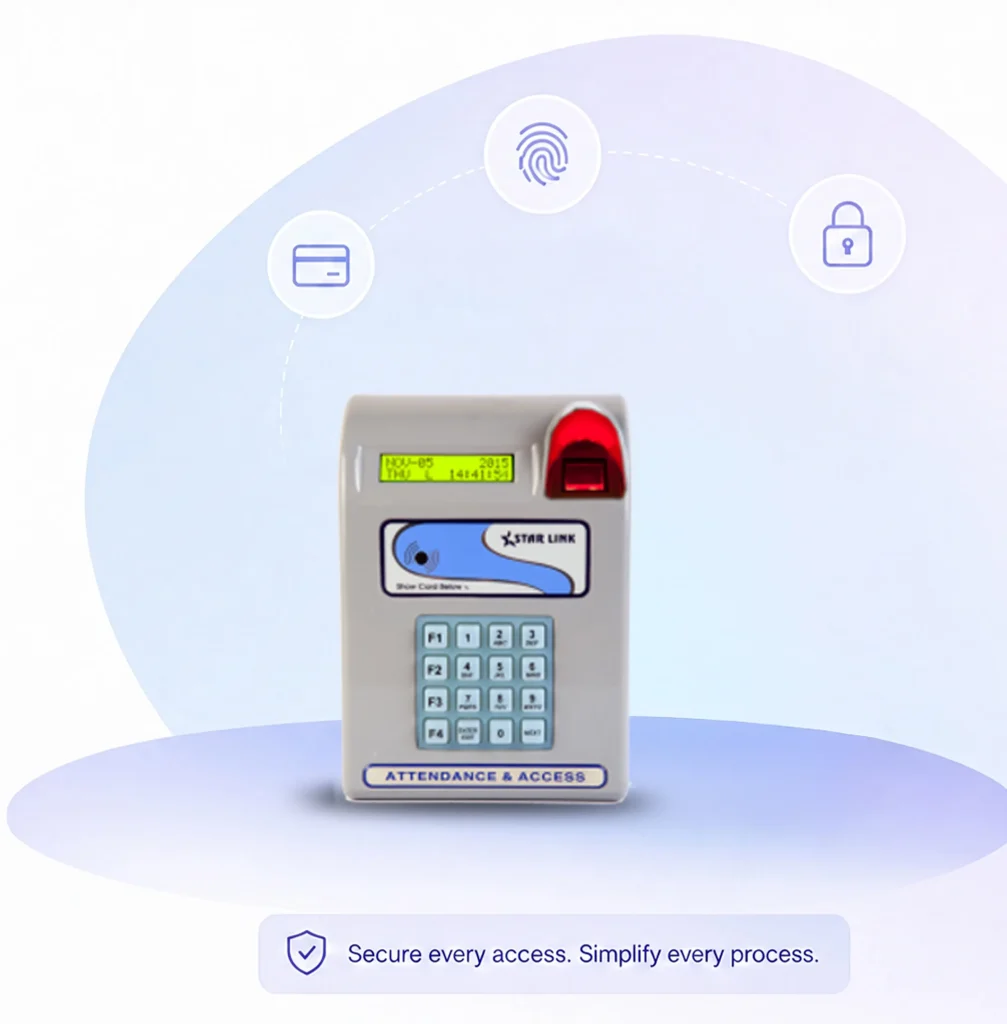

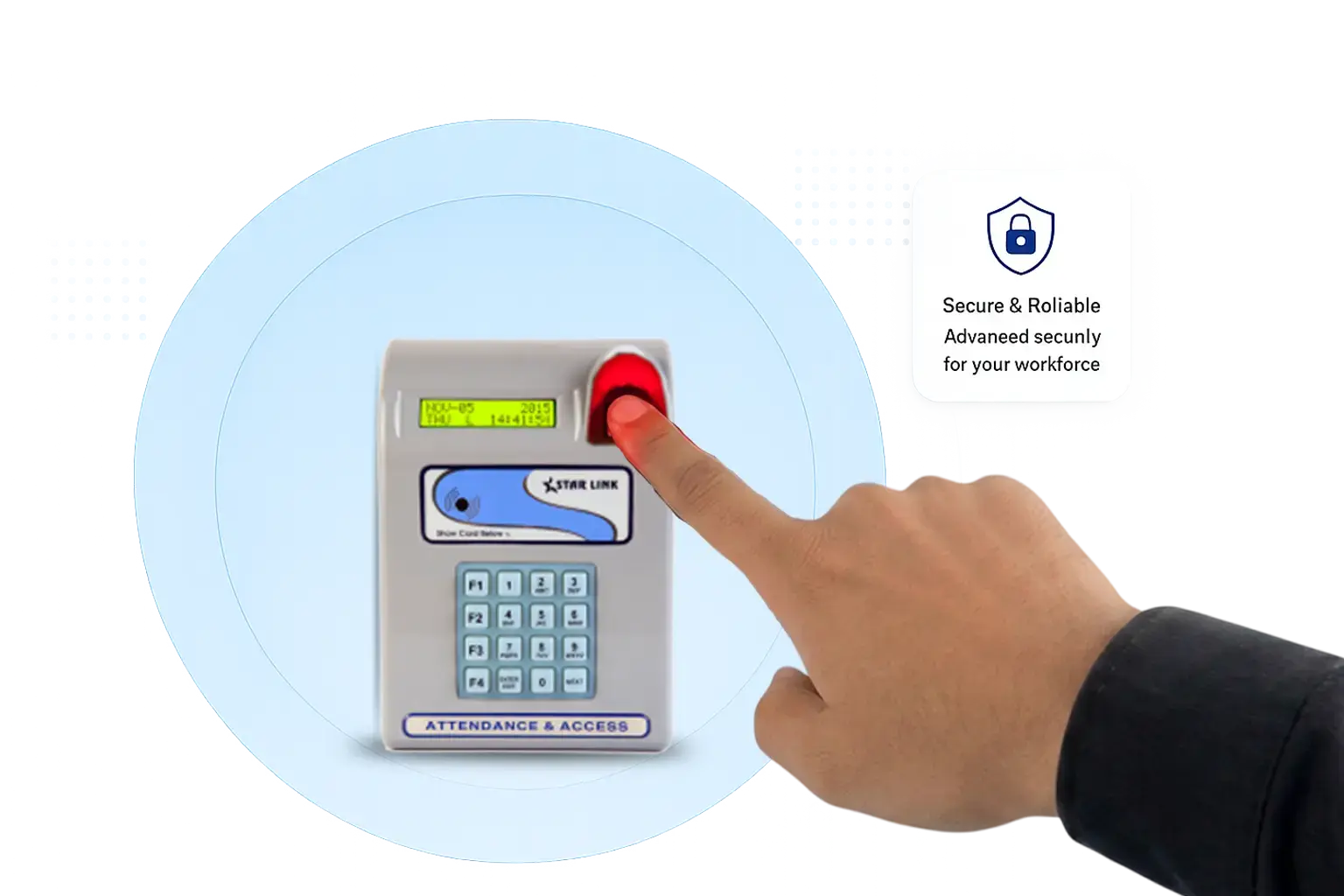

Experience the new world of biometrics with Classic Model, which is exquisitely made to serve your purpose of attendance system and access control. Made with latest technological array including unmatchable features make it a perfect solution. The Classic Model have the recording capacity of 62,500 records with up to 9,560 finger templates (that can be extended up to 25,000 for 1:1 matching). It can be installed in any kind of set-up where you want to maintain the attendance records of employees.

Featuring a 16 characters x 2 rows of display, which show the details of the employee during punching. This device runs on multiple operational modes. The built in TCP/IP connectivity helps to get the data on a single click of mouse. This device comes with multiple communication modes which makes it more versatile to be used for different applications. Additionally, any kind of customization can be done to serve the purpose of clients.

    Product Features:

  • LCD Display – 16 characters/2 rows
  • 32 bit ARM micro processor
  • Capacity of 62,500 records
  • 9560 finger template storage (25000 optional for 1:1 Matching)
  • Built-in 10/100 Mbps TCP/IP connectivity
  • Multiple operational modes
  • Ideal for Guard Tracking System
  • Access Control ready
  • Customization possible

Technical Specifications:-

Classic Model is available in 3 model, depending on its operational mode.

Reader Type SMART CARD PROXIMITY CARD FINGERPRINT
Processor 32 Bit RISC MC 32 Bit RISC MC 32 Bit RISC MC
Card Type 1K,4K EM Card 512 Byte EM Card
Read Range Up to 60 mm Up to 120 mm Up to 60 / 120 mm
Frequency /Modulation 13.56 Mhz. 125 Khz. 125 Khz/13.56 Mhz.
Identification Time Less than 1 sec. Less than 1 sec. Less than 1 sec.
Display LCD 16 x 2 Character 16 x 2 Character 16 x 2 Character
Memory Transaction 62,500 records 62,500 records 62,500 records
Card Masking 15,000 records 15,000 records 9,500/6,500 records
Communication Mode RS 232, TCP/IP RS 232, TCP/IP RS 232, TCP/IP
Operating Temperature 5 to 50 °C 5 to 50 °C 5 to 50 °C
Operating Humidity 10 to 90% 10 to 90% 10 to 90%
Operating Voltage DC 12V, 500 mA DC 12V, 500 mA DC 12V, 500 mA
Dimension (in mm) H=183, W=131, B=58 H=183, W=131, B=58 H=183, W=131, B=58
Weight 600 gms 600 gms 600 gms
Keypad 4 x 4 4 x 4 4 x 4
Audio/Video Indicators Buzzer / LED Buzzer / LED Buzzer / LED

    Scanner Specifications:-

  • Dedicated 400MHz DSP 2 Mb RAM
  • ISO/IEC 19794 Fingerprint Template
  • Sensor Technology: Optical CMOS
  • Sensing Area: 16.0mm × 19.0mm)
  • Image Size (Pixels): 272 × 320
  • Image Resolution: 500 dpi
  • Finger Verification Option: 1:N, 1:1
  • Finger Template Size: 384 bytes.
  • EER < 0.1%
  • Enrollment Time: 1~1.5 Sec
  • Verification < 0.8 Sec
  • Identification Time: 1~1.5 Sec
  • Note: Combination varies as per the model

Standard Applications:: Time Attendances, Access Control, Payroll, Canteen, Visitor, Guard Tracking System

Other Applications: School / College Mgt., Club Mgt., Gym Mgt., Coffee Vending Machines,
(SDK available for any other applications for system integrators)

Hardware Interface: Boom barrier, Turnstile, Flap Barrier

    Operational Modes:-

  • Only Finger
  • Only Card (EM)
  • Card with finger
  • Finger in card ( 2 fingers in 1 Kb card, 10 fingers in 4KB card)
  • Card with password
  • Pin with passsword
  • Only PIN
  • Note: Combination varies as per the model

    Why STAR LINK is ahead of others?

  • Latest technology
  • Superior Standards of quality
  • Customization facility
  • Competitive prices
  • Prompt delivery
  • Excellent after sales services
  • Complete solution as per need
